Side Loader Trailer

Buyers searching for a hammar side loader or generic side lifter trailer usually want the same capability: a container side loader trailer that loads and unloads itself without a crane, forklift, or fixed dock. SIGMA builds its sidelifter on a reinforced Q345B chassis with twin synchronized hydraulic arms rated for repeated 32-ton lift cycles, twist-lock corner castings sized for 20ft, 40ft, and 45ft boxes, and a full tilt function for tipping bulk cargo straight onto the ground. It suits depots, farms, and rural drop points where dock infrastructure and handling equipment are not available.

A Side Loader Trailer That Handles Its Own Containers

Most trailer types depend on a crane, forklift, or loading dock to move a container on or off the deck. A side loader trailer removes that dependency by carrying its own hydraulic lifting system. SIGMA's design uses twin arms mounted along the chassis rails that reach down, clamp the container's corner castings, and lift it clear of the deck before setting it down at ground level or stacking it on another chassis. This is the same working principle behind the container side loader trailer used across drayage and depot fleets, and it pairs well with a standard container chassis for operators running mixed fleets between dock and non-dock routes.

Hammar-Style Sidelifter Arms and Lift Capacity

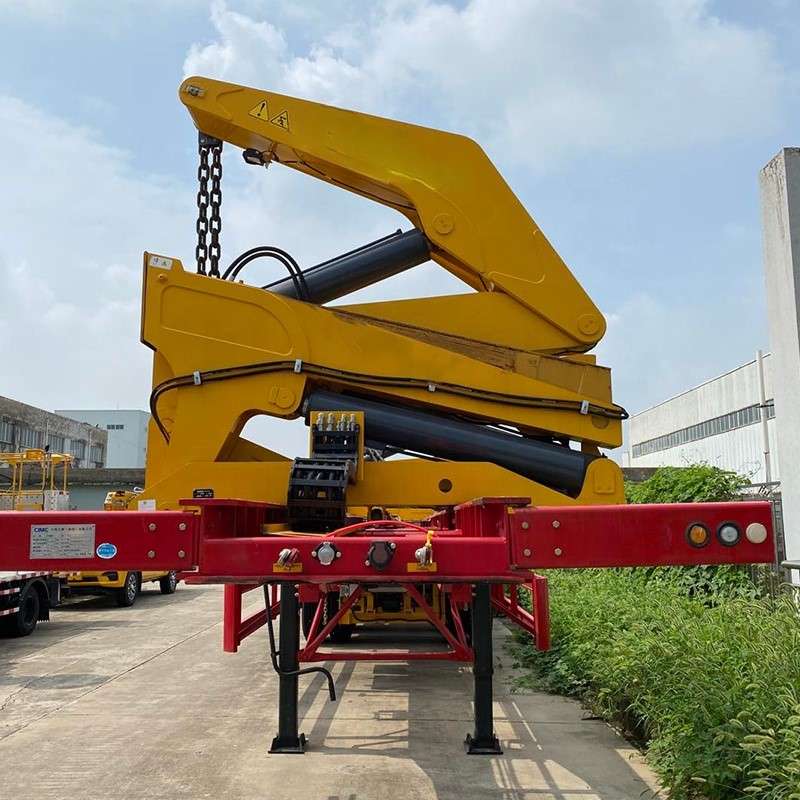

The twin-arm system is often referred to in the industry as a hammar side loader, a hammar side lifter, or a side lifter trailer, after the Swedish brand that popularized the design. SIGMA's version follows the same working principle: two independent hydraulic arms, each rated to lift half of a fully loaded 32-ton container, synchronized so the box stays level through the full lift cycle. The arms telescope out from the chassis rails to reach containers set on the ground beside the trailer, then draw them in and lower them onto the deck. Where a customer only needs standard container haulage without self-loading, a flatbed semi trailer or dedicated chassis is the more cost-effective choice.

Where Sidelifters Earn Their Keep

A side loader trailer for sale typically goes to fleets serving customers without forklifts, cranes, or raised docks: rural distributors, farm supply depots, disaster relief operations, and construction sites receiving material in bulk containers. Because the trailer tilts the box fully onto its side, drivers can also empty loose cargo like grain, feed, or aggregate straight from the container without separate tipping equipment. This dual function, container handling plus bulk discharge, is why operators search for a hammar side loader for sale rather than a standard curtain side trailer when the delivery point has no fixed infrastructure.

Chassis Build and Serviceability

The chassis is built from Q345B high-tensile steel with reinforced cross members under the arm pivot points, since a fully loaded 32-ton lift concentrates stress at those mounts far more than normal road transport. Air suspension with ECAS levelling keeps the deck height consistent whether the trailer is running loaded or setting down a container on soft ground. Hydraulic hoses and pivot bushings are positioned for access from ground level, since a stranded sidelifter usually means a stranded container too. Fleets running both container side loader trailers and a dedicated dry bulk trailer for loose cargo can standardize axle and tire parts across the fleet.
