Flatbed Semi Trailer

SIGMA manufactures the flatbed semi trailer in 2-axle and 3-axle configurations to match load weight and route regulations across export markets. Every flatbed trailer for sale leaves the factory with a reinforced I-beam chassis, stake pockets down both rail sides, and twist-lock mounts so the same deck handles steel coil one week and a 20ft container the next. Paired with a semi truck flatbed trailer tractor unit, the low deck height keeps the center of gravity manageable on mountain routes, while BPW or FUWA axles and an air brake system keep stopping distances predictable at full payload.

Deck Design Built for Mixed Cargo

The flat-deck unit platform stays the most flexible unit in a mixed fleet because nothing sits above the deck line - loading works from a forklift, crane or ramp without side walls getting in the way. SIGMA frames the deck on a Q345B I-beam chassis with stake pockets every 300mm so timber, pipe or crated machinery can be strapped down fast. For cargo that's tall or needs the deck close to the ground, a lowbed trailer is often paired into the same fleet, but for palletized freight and standard height loads the flatbed remains the faster loading, lower-cost choice.

Axle and Payload Options

Most flat bed trailers leaving the SIGMA yard run 2 or 3 axles depending on the payload bracket the customer needs - 2-axle units suit 30-35 ton loads on shorter regional runs, while 3-axle spec pushes rated payload to 40-45 tons for long-haul steel and machinery work. Every flatbed tractor trailer combination is matched for kingpin height and 5th wheel clearance before it ships, so the deck sits level under load. Axles come from FUWA or BPW with mechanical suspension as standard and air suspension available where ride quality or axle load sensors are required by the destination country.

Container and General Freight Use

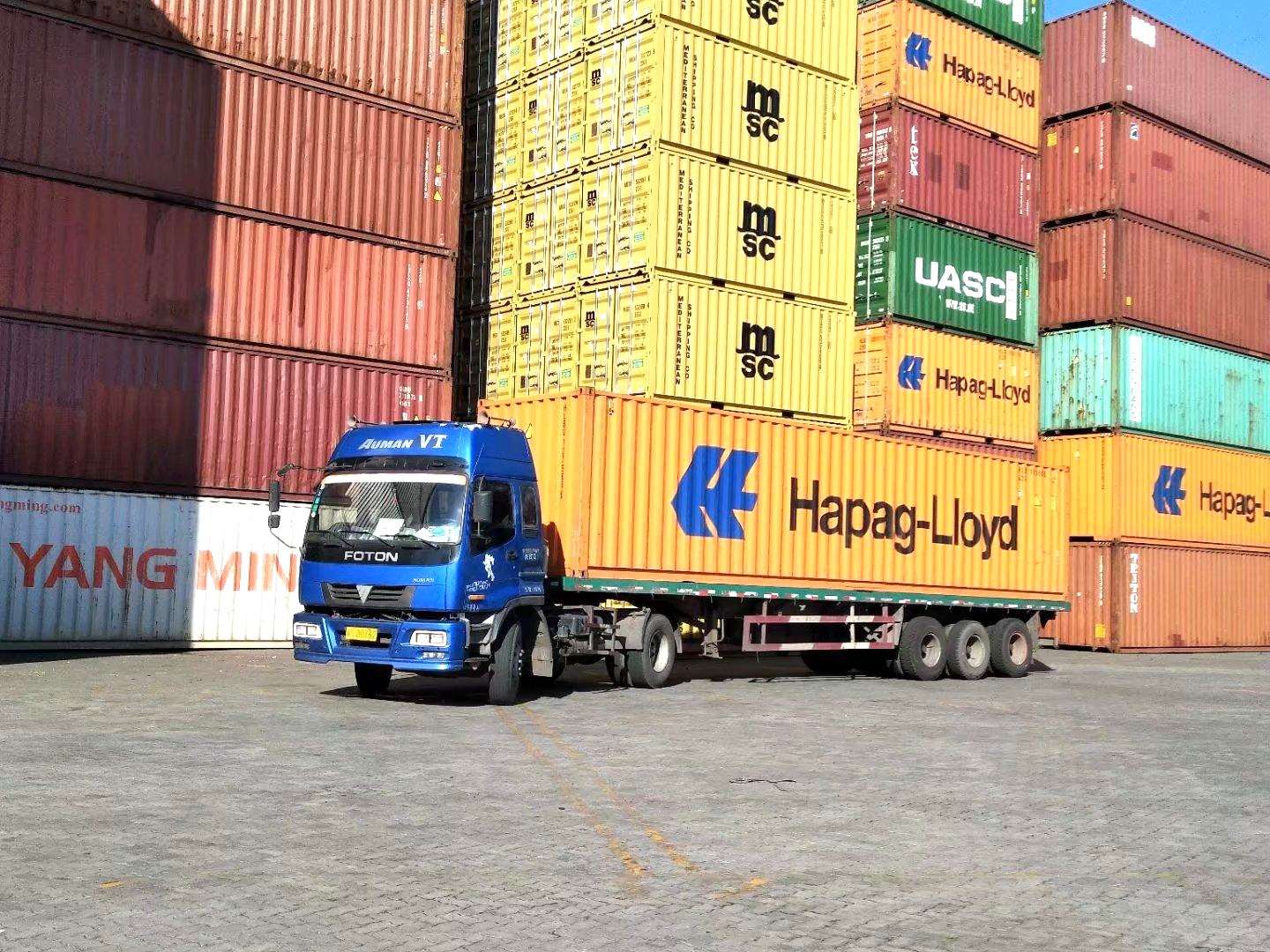

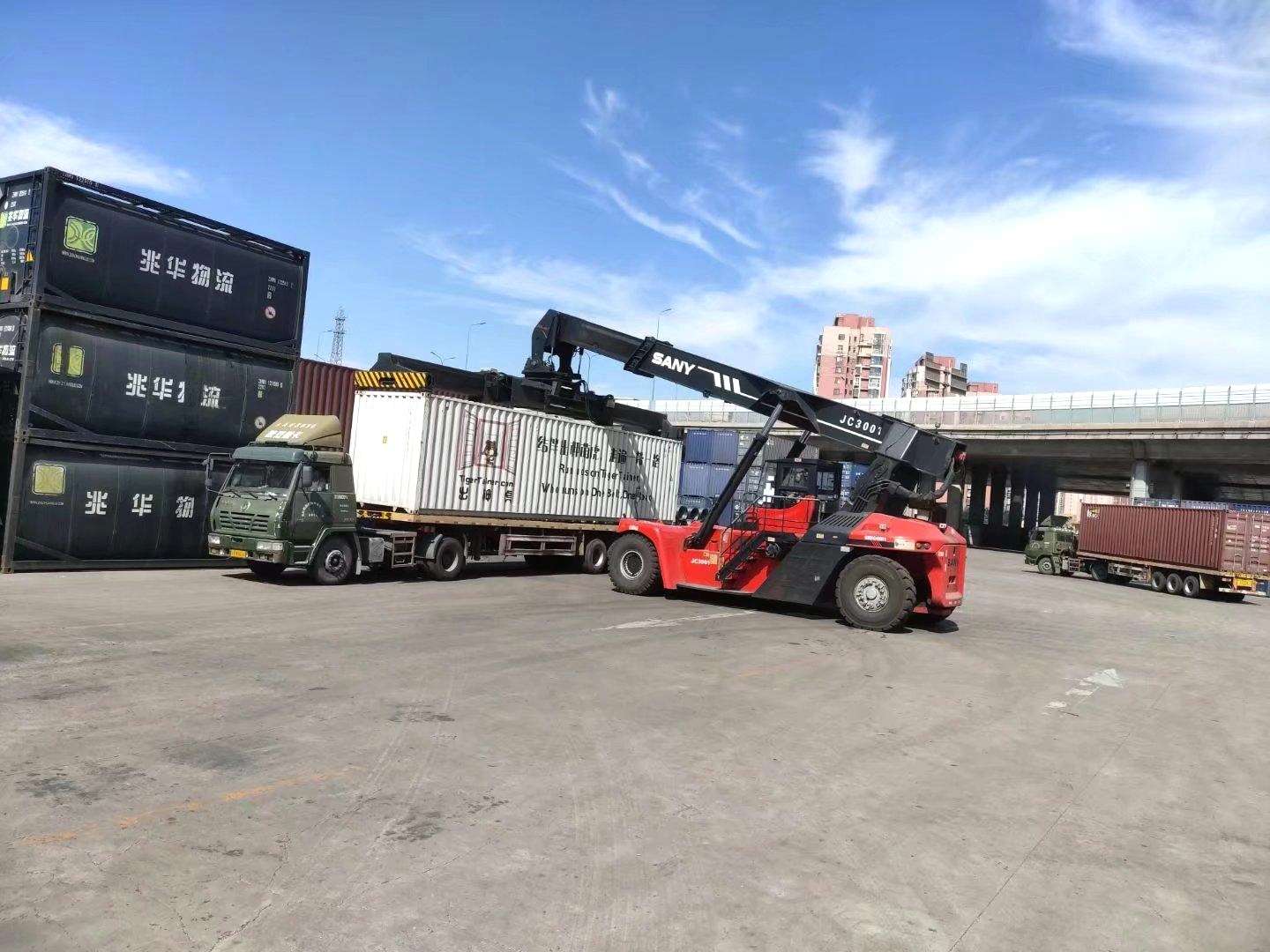

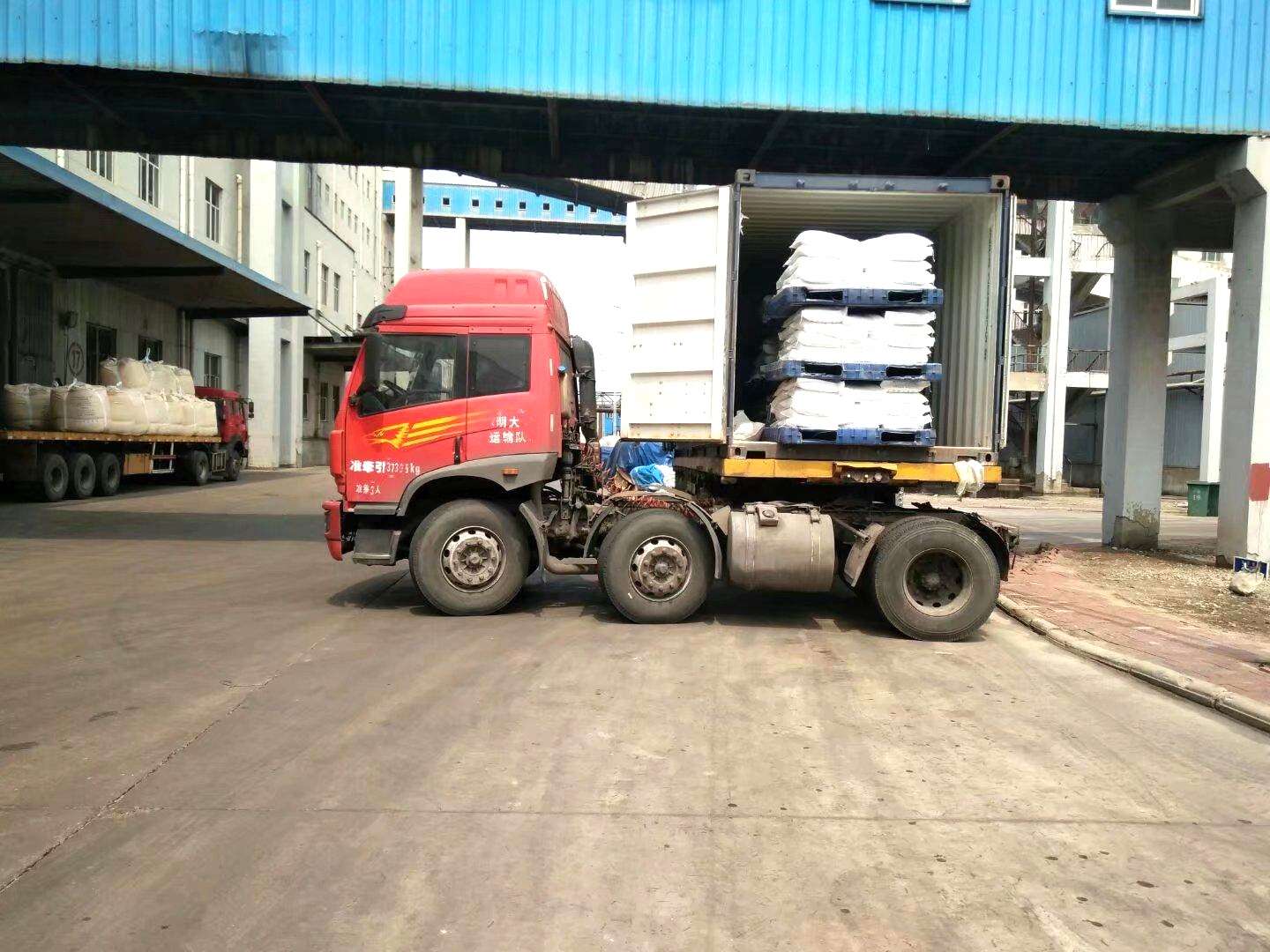

A semi truck flat-deck unit earns its keep hauling whatever a box trailer can't - oversize crates, pipe bundles, steel plate, and shipping containers moved between port and inland yard. Twist-lock sockets bolted into the deck let the same flatbed semi truck trailer switch from loose cargo to a 40ft container within minutes, which matters for operators running mixed freight instead of dedicated container work. Rub rails and stake pockets down both sides keep chain and strap anchor points close to the load rather than at the trailer ends only.

Ordering and Specification

Every flatbed trailer for sale from SIGMA ships with a factory test certificate, VIN plate, and documentation package suited for RoRo or container export. Deck length runs from 12.2m up to 13m to match regional length limits, and axle spacing can be adjusted for customers who need a shorter kingpin-to-axle distance for tight turning radius. Buyers moving between flatbed and lowbed work in the same operation often spec both from one order to keep spare parts, tires and brake components common across the fleet.
