Lowbed Semi Trailer

Fleets that run a lowboy trailer day to day usually carry excavators, wheel loaders, cranes or oversized industrial equipment that a standard flatbed can't clear under bridges or power lines. SIGMA builds the low bed trailer with a fixed gooseneck or hydraulic detachable neck, dropping deck height to as low as 350mm loaded. As a low loader, the double-drop frame keeps the load's center of gravity down for stability on grades and tight mountain curves. Matched with a suitable lowboy tractor trailer combination, axle counts run from 2 to 6+ depending on the gross weight the equipment demands. Fleets shopping for lowboys at this payload class usually cross-shop a fixed gooseneck build against a low loader trailer with a detachable neck before settling on a spec.

Why the Deck Height Matters

A low bed trailer earns its place in a heavy-haul fleet because deck height is what decides whether an excavator or crane clears a bridge, tunnel or overhead line without a permit headache. SIGMA drops the loaded deck to 350-600mm using a double-drop frame between the gooseneck and the rear bogie, compared to the 1,150mm+ height on a standard flatbed trailer. That difference matters most on routes with fixed underpasses, where every 100mm of deck height saved is 100mm less total rig height to clear.

Lowboy and Low Loader Configurations

Most operators still call it a lowboy trailer regardless of exact spec, but the build varies a lot underneath - fixed gooseneck for simple drive-on loading, hydraulic detachable neck for equipment that can't be winched up a ramp, and widened decks for machinery wider than 3m. As a low loader, the frame is engineered around concentrated point loads rather than distributed cargo, so the main beam uses a welded box girder in Q345B or Q420B steel instead of the I-beam common on flat platforms.

Axle Counts and Tractor Pairing

Axle count on a lowboy tractor trailer scales directly with the equipment being moved - 2 or 3 axles cover machinery up to about 40 tons, while 4 to 6+ axle hydraulic bogies handle mining shovels, large cranes and generator sets pushing past 80-100 tons. A lowboy truck trailer combination this heavy needs a tractor with matching horsepower and a fifth wheel rated for the higher kingpin load, so SIGMA specs the gooseneck pin height and load transfer to suit whatever prime mover the customer already runs.

Loading Method and Ramps

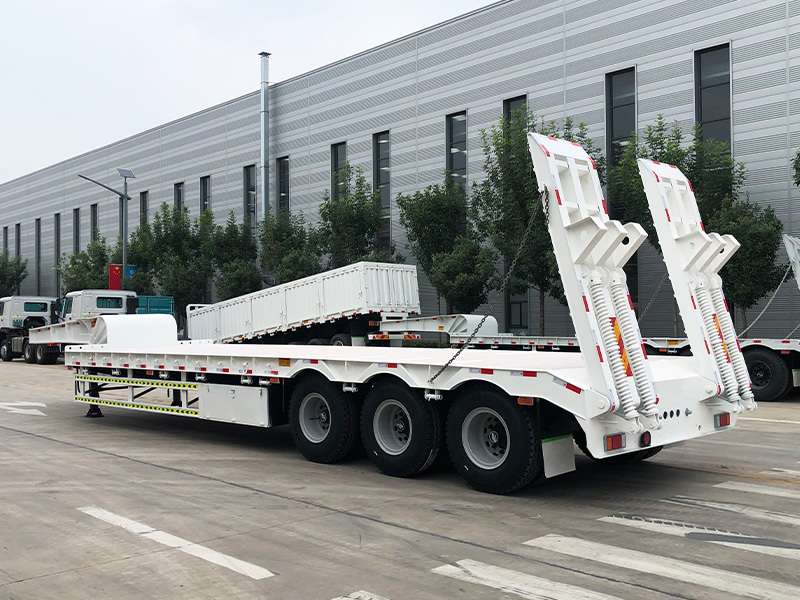

Loading a tracked excavator or wheel loader onto a low bed trailer works two ways: drive the machine up hydraulic or mechanical fold-down ramps at the rear, or detach the gooseneck and drive it on from the front like an RGN. SIGMA ships both ramp types depending on the deck length ordered, and the hydraulic ramps fold flat against the frame for transport so they don't add to overall trailer length. Fleets running mixed equipment sizes usually order the detachable neck version since it handles both tracked and wheeled machinery without needing a loading dock.
